Integrate Facial Tracking with Your Avatar

Note: Before you start, please install or update the latest VIVE Software from SteamVR or OOBE, and check your SR_Runtime

OpenXR Facial Tracking Plugin Setup

Supported Unity Engine version: 2020.2+

  • Enable OpenXR Plugins:
    • Please enable OpenXR plugin in Edit > Project Settings > XR Plug-in Management:

  • Click Exclamation mark next to “OpenXR” then choose “Fix All”.

  • Add Interaction profiles for your device.

As follows, taking Vive Controller as an example.


  • Enable Facial Tracking extensions

Update avatar in your App

    1. Import your avatar (Use the avatar provided by our FacialTracking sample as an example).

Assets > Samples > VIVE Wave OpenXR Plugin - Windows > 1.0.4 > FacialTracking Example > ViveSR > Models > version2 > Avatar_Shieh_V2.fbx


Note : It is recommended to negate the z scale value so that the avatar is consistent with the user's left and right direction.

image7.png image8.png

  1. Create new script which declares corresponding enum types as follows.
    1. OpenXR eye blend shapes

      enum OpenXREyeShape
      {
          XR_EYE_SHAPE_NONE_HTC = -1,
          XR_EYE_EXPRESSION_LEFT_BLINK_HTC = 0,
          XR_EYE_EXPRESSION_LEFT_WIDE_HTC = 1,
          XR_EYE_EXPRESSION_RIGHT_BLINK_HTC = 2,
          XR_EYE_EXPRESSION_RIGHT_WIDE_HTC = 3,
          XR_EYE_EXPRESSION_LEFT_SQUEEZE_HTC = 4,
          XR_EYE_EXPRESSION_RIGHT_SQUEEZE_HTC = 5,
          XR_EYE_EXPRESSION_LEFT_DOWN_HTC = 6,
          XR_EYE_EXPRESSION_RIGHT_DOWN_HTC = 7,
          XR_EYE_EXPRESSION_LEFT_OUT_HTC = 8,
          XR_EYE_EXPRESSION_RIGHT_IN_HTC = 9,
          XR_EYE_EXPRESSION_LEFT_IN_HTC = 10,
          XR_EYE_EXPRESSION_RIGHT_OUT_HTC = 11,
          XR_EYE_EXPRESSION_LEFT_UP_HTC = 12,
          XR_EYE_EXPRESSION_RIGHT_UP_HTC = 13,
          XR_EYE_EXPRESSION_MAX_ENUM_HTC = 14,
      }

    1. OpenXR lip blend shapes

      public enum OpenXRLipShapeHTC

      {

          XR_LIP_SHAPE_NONE_HTC = -1,

          XR_LIP_SHAPE_JAW_RIGHT_HTC = 0,

          XR_LIP_SHAPE_JAW_LEFT_HTC = 1,

          XR_LIP_SHAPE_JAW_FORWARD_HTC = 2,

          XR_LIP_SHAPE_JAW_OPEN_HTC = 3,

          XR_LIP_SHAPE_MOUTH_APE_SHAPE_HTC = 4,

      XR_LIP_SHAPE_MOUTH_UPPER_RIGHT_HTC = 5, XR_LIP_SHAPE_MOUTH_UPPER_LEFT_HTC = 6, XR_LIP_SHAPE_MOUTH_LOWER_RIGHT_HTC = 7, XR_LIP_SHAPE_MOUTH_LOWER_LEFT_HTC = 8, XR_LIP_SHAPE_MOUTH_UPPER_OVERTURN_HTC = 9, XR_LIP_SHAPE_MOUTH_LOWER_OVERTURN_HTC = 10, XR_LIP_SHAPE_MOUTH_POUT_HTC = 11, XR_LIP_SHAPE_MOUTH_SMILE_RIGHT_HTC = 12, XR_LIP_SHAPE_MOUTH_SMILE_LEFT_HTC = 13, XR_LIP_SHAPE_MOUTH_SAD_RIGHT_HTC = 14, XR_LIP_SHAPE_MOUTH_SAD_LEFT_HTC = 15, XR_LIP_SHAPE_CHEEK_PUFF_RIGHT_HTC = 16, XR_LIP_SHAPE_CHEEK_PUFF_LEFT_HTC = 17, XR_LIP_SHAPE_CHEEK_SUCK_HTC = 18, XR_LIP_SHAPE_MOUTH_UPPER_UPRIGHT_HTC = 19, XR_LIP_SHAPE_MOUTH_UPPER_UPLEFT_HTC = 20, XR_LIP_SHAPE_MOUTH_LOWER_DOWNRIGHT_HTC = 21, XR_LIP_SHAPE_MOUTH_LOWER_DOWNLEFT_HTC = 22, XR_LIP_SHAPE_MOUTH_UPPER_INSIDE_HTC = 23, XR_LIP_SHAPE_MOUTH_LOWER_INSIDE_HTC = 24, XR_LIP_SHAPE_MOUTH_LOWER_OVERLAY_HTC = 25, XR_LIP_SHAPE_TONGUE_LONGSTEP1_HTC = 26, XR_LIP_SHAPE_TONGUE_LEFT_HTC = 27, XR_LIP_SHAPE_TONGUE_RIGHT_HTC = 28, XR_LIP_SHAPE_TONGUE_UP_HTC = 29, XR_LIP_SHAPE_TONGUE_DOWN_HTC = 30, XR_LIP_SHAPE_TONGUE_ROLL_HTC = 31, XR_LIP_SHAPE_TONGUE_LONGSTEP2_HTC = 32, XR_LIP_SHAPE_TONGUE_UPRIGHT_MORPH_HTC = 33, XR_LIP_SHAPE_TONGUE_UPLEFT_MORPH_HTC = 34, XR_LIP_SHAPE_TONGUE_DOWNRIGHT_MORPH_HTC = 35, XR_LIP_SHAPE_TONGUE_DOWNLEFT_MORPH_HTC = 36, XR_LIP_SHAPE_MAX_ENUM_HTC = 37 }
    1. Your avatar blend shapes.


image10.png image11.png

  1. Create new script for eye tracking.
    • Add following namespaces to your script.
using UnityEngine.XR.OpenXR;
using VIVE.FacialTracking;
using System;
using System.Runtime.InteropServices;
    • Add the following properties:
private static XrFacialExpressionsHTC EyeExpression_;
private static float[] blendshapes = new float[60];
//Map OpenXR eye shapes to avatar blend shapes
private static Dictionary<OpenXREyeShape, SkinnedMeshRendererShape> ShapeMap;
public SkinnedMeshRenderer HeadskinnedMeshRenderer;

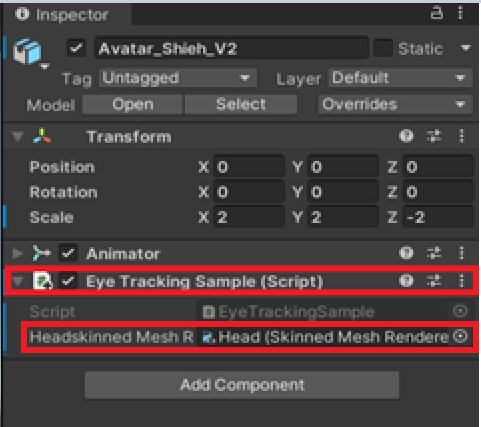

    • Attach it to your avatar and set options in inspector.
image12.png image13.png

4. In Start function:
    • Set the mapping relations between OpenXR eye shapes and avatar blend shapes.
      ShapeMap = new Dictionary<OpenXREyeShape, SkinnedMeshRendererShape>();
      ShapeMap.Add(OpenXREyeShape.XR_EYE_EXPRESSION_LEFT_BLINK_HTC, SkinnedMeshRendererShape.Eye_Left_Blink);
      ShapeMap.Add(OpenXREyeShape.XR_EYE_EXPRESSION_LEFT_WIDE_HTC, SkinnedMeshRendererShape.Eye_Left_Wide);
      ShapeMap.Add(OpenXREyeShape.XR_EYE_EXPRESSION_RIGHT_BLINK_HTC, SkinnedMeshRendererShape.Eye_Right_Blink);
      ShapeMap.Add(OpenXREyeShape.XR_EYE_EXPRESSION_RIGHT_WIDE_HTC, SkinnedMeshRendererShape.Eye_Right_Wide );
      ShapeMap.Add(OpenXREyeShape.XR_EYE_EXPRESSION_LEFT_SQUEEZE_HTC, SkinnedMeshRendererShape.Eye_Left_Squeeze );
      ShapeMap.Add(OpenXREyeShape.XR_EYE_EXPRESSION_RIGHT_SQUEEZE_HTC,SkinnedMeshRendererShape.Eye_Right_Squeeze );
      ShapeMap.Add(OpenXREyeShape.XR_EYE_EXPRESSION_LEFT_DOWN_HTC, SkinnedMeshRendererShape.Eye_Left_Down);
      ShapeMap.Add(OpenXREyeShape.XR_EYE_EXPRESSION_RIGHT_DOWN_HTC,SkinnedMeshRendererShape.Eye_Right_Down);
      ShapeMap.Add(OpenXREyeShape.XR_EYE_EXPRESSION_LEFT_OUT_HTC,SkinnedMeshRendererShape.Eye_Left_Left );
      ShapeMap.Add(OpenXREyeShape.XR_EYE_EXPRESSION_RIGHT_IN_HTC,SkinnedMeshRendererShape.Eye_Right_Left );
      ShapeMap.Add(OpenXREyeShape.XR_EYE_EXPRESSION_LEFT_IN_HTC, SkinnedMeshRendererShape.Eye_Left_Right );
      ShapeMap.Add(OpenXREyeShape.XR_EYE_EXPRESSION_RIGHT_OUT_HTC, SkinnedMeshRendererShape.Eye_Right_Right );
      ShapeMap.Add(OpenXREyeShape.XR_EYE_EXPRESSION_LEFT_UP_HTC, SkinnedMeshRendererShape.Eye_Left_Up );
      ShapeMap.Add(OpenXREyeShape.XR_EYE_EXPRESSION_RIGHT_UP_HTC ,SkinnedMeshRendererShape.Eye_Right_Up );

    • To start eye tracking detection:
      var feature = OpenXRSettings.Instance.GetFeature();
      XrFacialTrackerCreateInfoHTC m_expressioncreateInfo = new XrFacialTrackerCreateInfoHTC(
                  XrStructureType.XR_TYPE_FACIAL_TRACKER_CREATE_INFO_HTC,
                  IntPtr.Zero,
                  XrFacialTrackingTypeHTC.XR_FACIAL_TRACKING_TYPE_EYE_DEFAULT_HTC);
      int res = feature.xrCreateFacialTrackerHTC(m_expressioncreateInfo, out feature.m_expressionHandle);
      if (res == (int)XrResult.XR_SUCCESS || res == (int)XrResult.XR_SESSION_LOSS_PENDING)
      {
          Debug.Log("Initial Eye  success : " + res);
      }
      else
      {
          Debug.LogError("Initial Eye fail : " + res);
      }

5. In Update function:
    • Get eye tracking detection results:
      EyeExpression_.expressionCount = 60;
      EyeExpression_.type = XrStructureType.XR_TYPE_FACIAL_EXPRESSIONS_HTC;
      EyeExpression_.blendShapeWeightings = Marshal.AllocCoTaskMem(sizeof(float) * EyeExpression_.expressionCount);
      var feature = OpenXRSettings.Instance.GetFeature();
      int res = feature.xrGetFacialExpressionsHTC(feature.m_expressionHandle, ref EyeExpression_);
      if (res == (int)XrResult.XR_SUCCESS)
      {
          Marshal.Copy(EyeExpression_.blendShapeWeightings, blendshapes, 0, EyeExpression_.expressionCount);

      }
      else
      {
          Debug.LogError("Get eye tracking data failed with error code : " + res);
      }

    • Update avatar blend shapes
      for(int i = (int)OpenXREyeShape.XR_EYE_EXPRESSION_LEFT_BLINK_HTC; i < (int)OpenXREyeShape.XR_EYE_EXPRESSION_MAX_ENUM_HTC; i++)
      {
          HeadskinnedMeshRenderer.SetBlendShapeWeight((int)ShapeMap[(OpenXREyeShape)i], blendshapes[i] * 100f);
      }
6. In OnDestroy function:
    • Stop eye tracking detection:
      var feature = OpenXRSettings.Instance.GetFeature();
      int res = feature.xrDestroyFacialTrackerHTC(feature.m_expressionHandle);
      if (res == (int)XrResult.XR_SUCCESS)
      {
          Debug.Log("Release Eye engine  success : " + res);

      }
      else
      {
      Debug.LogError("Release Eye engine fail : " + res);
      }
7. Eye tracking result:


  1. Create new script for lip tracking.
    • Add following namespaces to your script.
      using UnityEngine.XR.OpenXR;
      using VIVE.FacialTracking;
      using System;
      using System.Runtime.InteropServices;
    • Add the following properties:
      public SkinnedMeshRenderer HeadskinnedMeshRenderer;
      private static XrFacialExpressionsHTC LipExpression_;
      private static float[] blendshapes = new float[60];
      //Map OpenXR lip shape to avatar lip blend shape
      private static Dictionary<OpenXRLipShape, SkinnedMeshRendererShape> ShapeMap;
    • Attach it to your avatar and set options in inspector.
      image12.png image15.png

    • In Start function:
      • Set the mapping relations between OpenXR lip shapes and avatar blend shapes.
        ShapeMap = new Dictionary<OpenXRLipShape, SkinnedMeshRendererShape>();
        ShapeMap.Add(OpenXRLipShape.XR_LIP_SHAPE_JAW_RIGHT_HTC, SkinnedMeshRendererShape.Jaw_Right);
        ShapeMap.Add(OpenXRLipShape.XR_LIP_SHAPE_JAW_LEFT_HTC, SkinnedMeshRendererShape.Jaw_Left);
        ShapeMap.Add(OpenXRLipShape.XR_LIP_SHAPE_JAW_FORWARD_HTC, SkinnedMeshRendererShape.Jaw_Forward);
        ShapeMap.Add(OpenXRLipShape.XR_LIP_SHAPE_JAW_OPEN_HTC, SkinnedMeshRendererShape.Jaw_Open);
        ShapeMap.Add(OpenXRLipShape.XR_LIP_SHAPE_MOUTH_APE_SHAPE_HTC, SkinnedMeshRendererShape.Mouth_Ape_Shape);
        ShapeMap.Add(OpenXRLipShape.XR_LIP_SHAPE_MOUTH_UPPER_RIGHT_HTC, SkinnedMeshRendererShape.Mouth_Upper_Right);
        ShapeMap.Add(OpenXRLipShape.XR_LIP_SHAPE_MOUTH_UPPER_LEFT_HTC, SkinnedMeshRendererShape.Mouth_Upper_Left);
        ShapeMap.Add(OpenXRLipShape.XR_LIP_SHAPE_MOUTH_LOWER_RIGHT_HTC, SkinnedMeshRendererShape.Mouth_Lower_Right);
        ShapeMap.Add(OpenXRLipShape.XR_LIP_SHAPE_MOUTH_LOWER_LEFT_HTC, SkinnedMeshRendererShape.Mouth_Lower_Left);
        ShapeMap.Add(OpenXRLipShape.XR_LIP_SHAPE_MOUTH_UPPER_OVERTURN_HTC, SkinnedMeshRendererShape.Mouth_Upper_Overturn);
        ShapeMap.Add(OpenXRLipShape.XR_LIP_SHAPE_MOUTH_LOWER_OVERTURN_HTC, SkinnedMeshRendererShape.Mouth_Lower_Overturn);
        ShapeMap.Add(OpenXRLipShape.XR_LIP_SHAPE_MOUTH_POUT_HTC, SkinnedMeshRendererShape.Mouth_Pout);
        ShapeMap.Add(OpenXRLipShape.XR_LIP_SHAPE_MOUTH_SMILE_RIGHT_HTC, SkinnedMeshRendererShape.Mouth_Smile_Right);
        ShapeMap.Add(OpenXRLipShape.XR_LIP_SHAPE_MOUTH_SMILE_LEFT_HTC, SkinnedMeshRendererShape.Mouth_Smile_Left);
        ShapeMap.Add(OpenXRLipShape.XR_LIP_SHAPE_MOUTH_SAD_RIGHT_HTC, SkinnedMeshRendererShape.Mouth_Sad_Right);
        ShapeMap.Add(OpenXRLipShape.XR_LIP_SHAPE_MOUTH_SAD_LEFT_HTC, SkinnedMeshRendererShape.Mouth_Sad_Left);
        ShapeMap.Add(OpenXRLipShape.XR_LIP_SHAPE_CHEEK_PUFF_RIGHT_HTC, SkinnedMeshRendererShape.Cheek_Puff_Right);
        ShapeMap.Add(OpenXRLipShape.XR_LIP_SHAPE_CHEEK_PUFF_LEFT_HTC, SkinnedMeshRendererShape.Cheek_Puff_Left);
        ShapeMap.Add(OpenXRLipShape.XR_LIP_SHAPE_CHEEK_SUCK_HTC, SkinnedMeshRendererShape.Cheek_Suck);
        ShapeMap.Add(OpenXRLipShape.XR_LIP_SHAPE_MOUTH_UPPER_UPRIGHT_HTC, SkinnedMeshRendererShape.Mouth_Upper_UpRight);
        ShapeMap.Add(OpenXRLipShape.XR_LIP_SHAPE_MOUTH_UPPER_UPLEFT_HTC, SkinnedMeshRendererShape.Mouth_Upper_UpLeft);
        ShapeMap.Add(OpenXRLipShape.XR_LIP_SHAPE_MOUTH_LOWER_DOWNRIGHT_HTC, SkinnedMeshRendererShape.Mouth_Lower_DownRight);
        ShapeMap.Add(OpenXRLipShape.XR_LIP_SHAPE_MOUTH_LOWER_DOWNLEFT_HTC, SkinnedMeshRendererShape.Mouth_Lower_DownLeft);
        ShapeMap.Add(OpenXRLipShape.XR_LIP_SHAPE_MOUTH_UPPER_INSIDE_HTC, SkinnedMeshRendererShape.Mouth_Upper_Inside);
        ShapeMap.Add(OpenXRLipShape.XR_LIP_SHAPE_MOUTH_LOWER_INSIDE_HTC, SkinnedMeshRendererShape.Mouth_Lower_Inside);
        ShapeMap.Add(OpenXRLipShape.XR_LIP_SHAPE_MOUTH_LOWER_OVERLAY_HTC, SkinnedMeshRendererShape.Mouth_Lower_Overlay);
        ShapeMap.Add(OpenXRLipShape.XR_LIP_SHAPE_TONGUE_LONGSTEP1_HTC, SkinnedMeshRendererShape.Tongue_LongStep1);
        ShapeMap.Add(OpenXRLipShape.XR_LIP_SHAPE_TONGUE_LEFT_HTC, SkinnedMeshRendererShape.Tongue_Left);
        ShapeMap.Add(OpenXRLipShape.XR_LIP_SHAPE_TONGUE_RIGHT_HTC, SkinnedMeshRendererShape.Tongue_Right);
        ShapeMap.Add(OpenXRLipShape.XR_LIP_SHAPE_TONGUE_UP_HTC, SkinnedMeshRendererShape.Tongue_Up);
        ShapeMap.Add(OpenXRLipShape.XR_LIP_SHAPE_TONGUE_DOWN_HTC, SkinnedMeshRendererShape.Tongue_Down);
        ShapeMap.Add(OpenXRLipShape.XR_LIP_SHAPE_TONGUE_ROLL_HTC, SkinnedMeshRendererShape.Tongue_Roll);
        ShapeMap.Add(OpenXRLipShape.XR_LIP_SHAPE_TONGUE_LONGSTEP2_HTC, SkinnedMeshRendererShape.Tongue_LongStep2);
        ShapeMap.Add(OpenXRLipShape.XR_LIP_SHAPE_TONGUE_UPRIGHT_MORPH_HTC, SkinnedMeshRendererShape.Tongue_UpRight_Morph);
        ShapeMap.Add(OpenXRLipShape.XR_LIP_SHAPE_TONGUE_UPLEFT_MORPH_HTC, SkinnedMeshRendererShape.Tongue_UpLeft_Morph);
        ShapeMap.Add(OpenXRLipShape.XR_LIP_SHAPE_TONGUE_DOWNRIGHT_MORPH_HTC, SkinnedMeshRendererShape.Tongue_DownRight_Morph);
        ShapeMap.Add(OpenXRLipShape.XR_LIP_SHAPE_TONGUE_DOWNLEFT_MORPH_HTC, SkinnedMeshRendererShape.Tongue_DownLeft_Morph);
      • To start lip tracking detection:
        var feature = OpenXRSettings.Instance.GetFeature();
        XrFacialTrackerCreateInfoHTC m_expressioncreateInfo = new XrFacialTrackerCreateInfoHTC(
                    XrStructureType.XR_TYPE_FACIAL_TRACKER_CREATE_INFO_HTC,
                    IntPtr.Zero,
                    XrFacialTrackingTypeHTC.XR_FACIAL_TRACKING_TYPE_LIP_DEFAULT_HTC);
        int res = feature.xrCreateFacialTrackerHTC(m_expressioncreateInfo, out feature.m_expressionHandle_Lip);
        if (res == (int)XrResult.XR_SUCCESS || res == (int)XrResult.XR_SESSION_LOSS_PENDING)
        {
            Debug.Log("Initial Lip  success : " + res);
        }
        else
        {
            Debug.LogError("Initial Lip fail : " + res);
        }

  1. In Update function:
    • Get lip tracking detection results:
      LipExpression_.expressionCount = 60;
      LipExpression_.type = XrStructureType.XR_TYPE_FACIAL_EXPRESSIONS_HTC;
      LipExpression_.blendShapeWeightings = Marshal.AllocCoTaskMem(sizeof(float) * LipExpression_.expressionCount);
      var feature = OpenXRSettings.Instance.GetFeature();
      int res = feature.xrGetFacialExpressionsHTC(feature.m_expressionHandle_Lip, ref LipExpression_);
      if (res == (int)XrResult.XR_SUCCESS)
      {
          Marshal.Copy(LipExpression_.blendShapeWeightings, blendshapes, 0, LipExpression_.expressionCount);

      }
      else
      {
          Debug.LogError("Get lip tracking data failed with error code : " + res);
      }
    • Update avatar blend shapes
      for(int i = (int)OpenXREyeShape.XR_EYE_EXPRESSION_LEFT_BLINK_HTC; i < (int)OpenXREyeShape.XR_EYE_EXPRESSION_MAX_ENUM_HTC; i++)
      {
          HeadskinnedMeshRenderer.SetBlendShapeWeight((int)ShapeMap[(OpenXREyeShape)i], blendshapes[i] * 100f);
      }

  1. In OnDestroy function:
    • Stop eye tracking detection:
      var feature = OpenXRSettings.Instance.GetFeature();
      int res = feature.xrDestroyFacialTrackerHTC(feature.m_expressionHandle);
      if (res == (int)XrResult.XR_SUCCESS)
      {
          Debug.Log("Release Eye engine  success : " + res);

      }
      else
      {
          Debug.LogError("Release Eye engine fail : " + res);
      }

  1. Lip tracking result:

Tips

  1. You can perform eye tracking and lip tracking on avatar at the same time to achieve facial tracking as shown below.

  1. To let avatar be more vivid, you could roughly infer the position of the left pupil and update avatar by following blend shapes. The similar way can also apply to right pupil.

XR_EYE_EXPRESSION_LEFT_UP_HTC

XR_EYE_EXPRESSION_LEFT_DOWN_HTC

XR_EYE_EXPRESSION_LEFT_IN_HTC

XR_EYE_EXPRESSION_LEFT_OUT_HTC

For example: add below code to script of eye tracking.

  1. Add the following properties:
    public GameObject leftEye;
    public GameObject rightEye;
    private GameObject[] EyeAnchors;
  • Set options in inspector.
image18.png image19.png

  1. Add following codes in Start function:
    • Create anchors for left and right eyes.
      EyeAnchors = new GameObject[2];
      EyeAnchors[0] = new GameObject();
      EyeAnchors[0].name = "EyeAnchor_" + 0;
      EyeAnchors[0].transform.SetParent(gameObject.transform);
      EyeAnchors[0].transform.localPosition = leftEye.transform.localPosition;
      EyeAnchors[0].transform.localRotation = leftEye.transform.localRotation;
      EyeAnchors[0].transform.localScale = leftEye.transform.localScale;
      EyeAnchors[1] = new GameObject();
      EyeAnchors[1].name = "EyeAnchor_" + 1;
      EyeAnchors[1].transform.SetParent(gameObject.transform);
      EyeAnchors[1].transform.localPosition = rightEye.transform.localPosition;
      EyeAnchors[1].transform.localRotation = rightEye.transform.localRotation;
      EyeAnchors[1].transform.localScale = rightEye.transform.localScale;

  1. Add following codes in Update function
    • Calculate eye gaze direction and update eye rotation.
      Vector3 GazeDirectionCombinedLocal = Vector3.zero;
      if (blendshapes[(int)OpenXREyeShape.XR_EYE_EXPRESSION_LEFT_IN_HTC] > blendshapes[(int)OpenXREyeShape.XR_EYE_EXPRESSION_LEFT_OUT_HTC])
      {
          GazeDirectionCombinedLocal.x = -blendshapes[(int)OpenXREyeShape.XR_EYE_EXPRESSION_LEFT_IN_HTC];
      }
      else
      {
          GazeDirectionCombinedLocal.x = blendshapes[(int)OpenXREyeShape.XR_EYE_EXPRESSION_LEFT_OUT_HTC];
      }
      if (blendshapes[(int)OpenXREyeShape.XR_EYE_EXPRESSION_LEFT_UP_HTC] > blendshapes[(int)OpenXREyeShape.XR_EYE_EXPRESSION_LEFT_WIDE_HTC])
      {
          GazeDirectionCombinedLocal.y = blendshapes[(int)OpenXREyeShape.XR_EYE_EXPRESSION_LEFT_UP_HTC];
      }
      else
      {
          GazeDirectionCombinedLocal.y = -blendshapes[(int)OpenXREyeShape.XR_EYE_EXPRESSION_LEFT_WIDE_HTC];
      }
      GazeDirectionCombinedLocal.z = (float)-1.0;
      Vector3 target = EyeAnchors[0].transform.TransformPoint(GazeDirectionCombinedLocal);
      leftEye.transform.LookAt(target);

      if (blendshapes[(int)OpenXREyeShape.XR_EYE_EXPRESSION_RIGHT_IN_HTC] > blendshapes[(int)OpenXREyeShape.XR_EYE_EXPRESSION_RIGHT_UP_HTC])
      {
          GazeDirectionCombinedLocal.x = blendshapes[(int)OpenXREyeShape.XR_EYE_EXPRESSION_RIGHT_IN_HTC];
      }
      else
      {
          GazeDirectionCombinedLocal.x = -blendshapes[(int)OpenXREyeShape.XR_EYE_EXPRESSION_RIGHT_UP_HTC];
      }
      if (blendshapes[(int)OpenXREyeShape.XR_EYE_EXPRESSION_RIGHT_UP_HTC] > blendshapes[(int)OpenXREyeShape.XR_EYE_EXPRESSION_RIGHT_DOWN_HTC])
      {
          GazeDirectionCombinedLocal.y = -blendshapes[(int)OpenXREyeShape.XR_EYE_EXPRESSION_RIGHT_UP_HTC];
      }
      else
      {
          GazeDirectionCombinedLocal.y = blendshapes[(int)OpenXREyeShape.XR_EYE_EXPRESSION_RIGHT_DOWN_HTC];
      }
      GazeDirectionCombinedLocal.z = (float)-1.0;
      target = EyeAnchors[1].transform.TransformPoint(GazeDirectionCombinedLocal);
      rightEye.transform.LookAt(target);
  • Results
