Interact with the Real World: OpenXR Scene Understanding

OpenXR Scene Understanding Plugin Setup

Supported Unreal Engine version: 4.27 +

  • Enable Plugins:
    • Please enable plugin in Edit > Plugins > Virtual Reality:
  • Disable Plugins:
    • The "Steam VR" plugin must be disabled for OpenXR to work.
    • Please disable plugin in Edit > Plugins > Virtual Reality:
    • Project Settings:
      • Please make sure the “ OpenXR Scene Understanding extension ” is enabled, the setting is in Edit > Project Settings > Plugins > Vive OpenXR > Scene Understanding:

Introduction to Blueprint Nodes for OpenXR Scene Understanding

  • Used to limit the range that will be scanned
    • These bounding volumes are used to determine which scene components to include in the resulting scene.
      • Set Scene Compute Oriented Box Bound : Set the bounds of the box shape.
      • Set Scene Compute Sphere Bound : Set the bounds of the sphere shape.
      • Set Scene Compute Frustum Bound : Set the bounds of the frustum shape.
      • Clear Scene Compute Bounds: Before the game ends, you need to clear all bounds by calling Clear Scene Compute Bounds .


  • Controls the update speed of the scene and will affect the quality of the scene result
    • This function will be trading off speed against the quality of the resulting scene.
    • Set Scene Compute Consistency
  • Identify the level of detail of meshes
    • This function will identify the level of detail of visual mesh compute.
    • Set Mesh Compute Lod

Show Scene Understanding scanned mesh in the game

  • Step1. Essential Setup
      • Creating an AR Session:
  • The AR-related content needs to be set here because the OpenXR Scene Understanding uses OpenXRARTrackedGeometry to make the scanned meshes appear in the level. Unreal Setting up AR project Tutorial
  • Create Data Asset: Content Browser > All > Content > click right mouse button > choose Miscellaneous > Data Asset


    • After choose Data Asset , it will pop out “ Pick Class For Data Asset Instance ” window:
      • Choose “ ARSessionConfig ” and press “ Select ”.
    • Open ARSessionConfig and enable some settings under Details Panel > AR Settiongs > World Mapping
      • Enable Generate Mesh Data from Tracked Geometry
      • Enable Generate Collision for Mesh Data

  • Open Level Blueprint and add Start AR Session and Stop AR Session
    • Remember to set the “ARSessionConfig” as input to Start AR Session.
  • Create a Blueprint for Scene Understanding and drag into the level.


Step2. BP_SceneUnderstanding: Display scanned mesh in the level
  • In this tutorial we choose Actor as the parent class.
  • In Components panel:
    • Add a Cube Static Mesh Component for Set Scene Compute Oriented Box Bounds .
image14.png image14.png

  • Add ARTrackableNotify Component in Components panel.



    • Add a new variable and name it “ spatialMeshes ” with type “ ARTrackedGeometry Array ” in My Blueprint
image17.png image18.png

  • Add a function and name it “ StartSpatialMapping ” in My Blueprint In this function, we need to call “ Toggle ARCapture ” function and set input “ On Off ” bool to true and “ Capture Type” to Spatial Mapping.
    • Add a function and name it “ StopSpatialMapping ” in My Blueprint In this function, we need to call “ Toggle ARCapture ” function and set input “ On Off ” bool to false and “ Capture Type” to Spatial Mapping .
image20.png image21.png

    • Event BeginPlay : We will add some functions that affect the quality and area of the scanned mesh.
    • On Add/Remove Tracked Geometry (ARTrackableNotify):
      • These two Events will control the number of mesh currently scanned.


  • Event Tick: You can get the current Spatial Meshes and Set Material on them.
  • Event BeginPlay: We will need to call Stop Spatial Mapping function and clear the bound you use at the beginning.


Result


Note:

  • White Area: meshes representing the real-environment objects.
  • Black Area: no objects in the space.

Spawn balls and interact with generated meshes

This sample is currently only supported Unreal Engine version: 5.0+ .

Because the physics system used by the meshes generated is Chaos Physics .

  • Create a Blueprint
    • Create a Blueprint for the “Spawn ball” and drag it into the level.
    • You can place as many as you want in the level.
image28.png image29.png

  • BP_SpawnBall: Make a sphere static mesh to simulate a physical fall.
    • In Components panel: Add a Sphere Static Mesh Component to pretend the ball in Components panel.

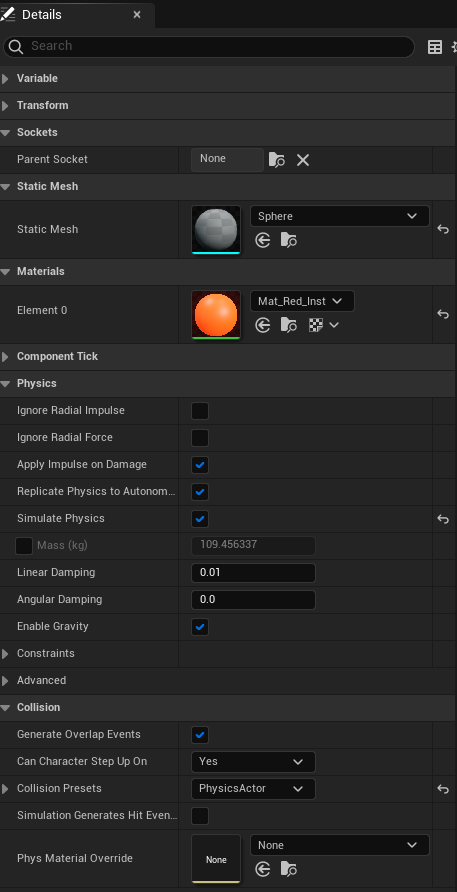

  • In Details panel: Enable Simulate Physics and make sure the Collision Presets is “PhysicsActor”
  • In My Blueprint panel:
    • Add a variable to hold the origin location of the ball.
    • In Event Graph panel:
      • Set the origin location of the ball when the game starts.
      • Track the height of the ball in each frame, and reset its position if it is below -600.

Result


Note:

  • Red Balls: Virtual Objects.
  • White Area: It means that there are scanned meshes .
  • Black Area: It means that there are no objects in the space.
